To Print TPU (95A) smoothly and TPU + PLA or TPU + PETG, refer above video, below are the G-Code
Machine start G-Code =
M190 S[bed_temperature_initial_layer_single]
M104 S[nozzle_temperature_initial_layer]
G90
M83
T[initial_no_support_extruder]
G1 Z2 F6000
G1 X50 Y-1 Z0.25 F9000
G1 E3.5 F500
G1 X70 E6 F350
G1 X200 E10 F750
G0 Y-1.4
G1 X130 E5 F750
G1 E-1.5 F3000
G92 E0
Machine end G-Code =
M83
G1 E-1 F300
G1 E-9 F600
G0 X50 Y50 F30000
M104 S0
TPU Filament end G-Code =
G1 E-0.5 F1500
PLA Filament end G-Code =
G1 E-0.8 F1800
PETG Filament end G-Code =
G1 E-0.8 F1800
1) AD5X Waste Bin, designed by HariMau3D
- To collect waste from printer, divert it to the side for easy collect.
- Required 4pcs M3 Heat Press Nut Insert >>> Buy Here <<<
- Required 4pcs Anti-slip feet (M3 Mounted) >>> Buy Here <<<
- Recommended Material - PETG / ABS

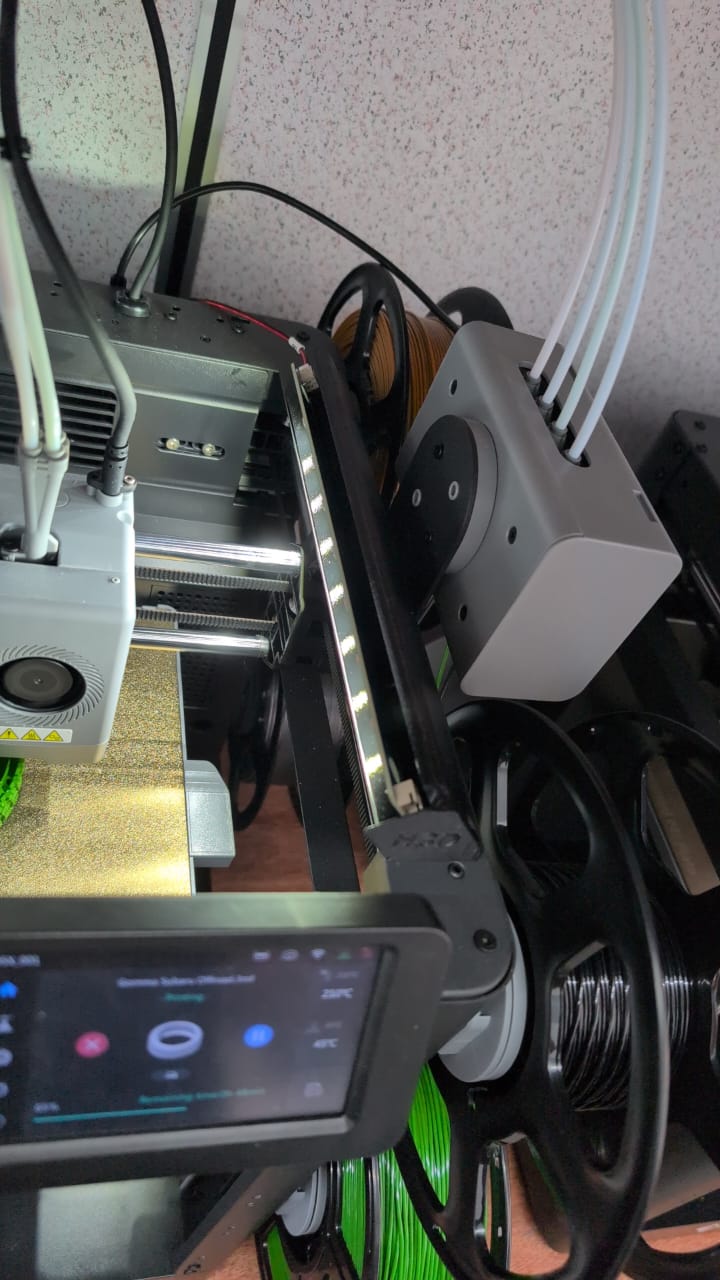

2) AD5X LED BAR HOLDER, designed by HariMau3D
- Only fit LED bar from H3D, reduce the needs to re-route the cable inside the printer.
- Use the 2x screws on the frame to mount the holder.
- Recommended Material - PETG / ABS
3) PTFE Tube Removal, designed by HariMau3D
- To assist in remove of PTFE tube from IFS and 4in1 tube.
- Recommended Material - PETG / ABS
Interesting Enclosure STL - >>> Download Here <<<
Slicer (Orca-Flashforge) - >>> Download Here <<<
All STL files in the Mod & Tune section are proprietary designs by Harimau3D.
These files are provided for personal use only. Any form of redistribution, re-uploading, resale, or sharing on other platforms (including but not limited to websites, forums, marketplaces, or social media) is strictly prohibited without prior written consent from Harimau3D.
We reserve the right to take action against any unauthorized use or distribution.
